All-Metal Steam Engine Model Kit That Works, Vertical Dual-Cylinder Boiler Steam Engine Motor Kit That Runs DIY Mechanical Dynamically Science Toy for Engine Enthusiasts

All-Metal Steam Engine Model Kit That Works, Vertical Dual-Cylinder Boiler Steam Engine Motor Kit That Runs DIY Mechanical Dynamically Science Toy for Engine Enthusiasts Specifications: .Material: Stainless Steel + Brass + Aluminum Alloy + Bamboo .Model: All-metal Vertical Twin-cylinder One-way Piston Steam Engine & Boiler Model .Item Number: K007 .Engine Form: RTR Version .Boiler Capacity: 167ml .Boiler Outer Diameter: 68mm .Piston Diameter: 14mm .Piston Stroke: 12mm .Flywheel Diameter: 78mm .Boiler Endurance: 25min .Product Weight: 1700g .Product Dimensions: 22 x 10 x 19.7cm .Package Dimensions: 26 x 20 x 15cm .Package Weight: 2100g .Paking: Box .Ages: 16+Package Including .Steam Engine Set *1 .Boiler *1 .Alcohol Lamp *1 .Instructions *1

• Stainless steel + brass + aluminum alloy + bamboo
• ➤ Material: Stainless Steel + Brass + Aluminum Alloy + Bamboo. Product Dimensions: 22 x 10 x 19.7cm. Model: All-metal Vertical Twin-cylinder One-way Piston Steam Engine & Boiler Model
• ➤ The engine is equipped with a CNC machined aluminum vertical boiler, featuring a conical combustion chamber for maximum heat absorption and steam generation efficiency. with F684 precision bearings and four F696 high-precision bearings for the gears and crankshaft.

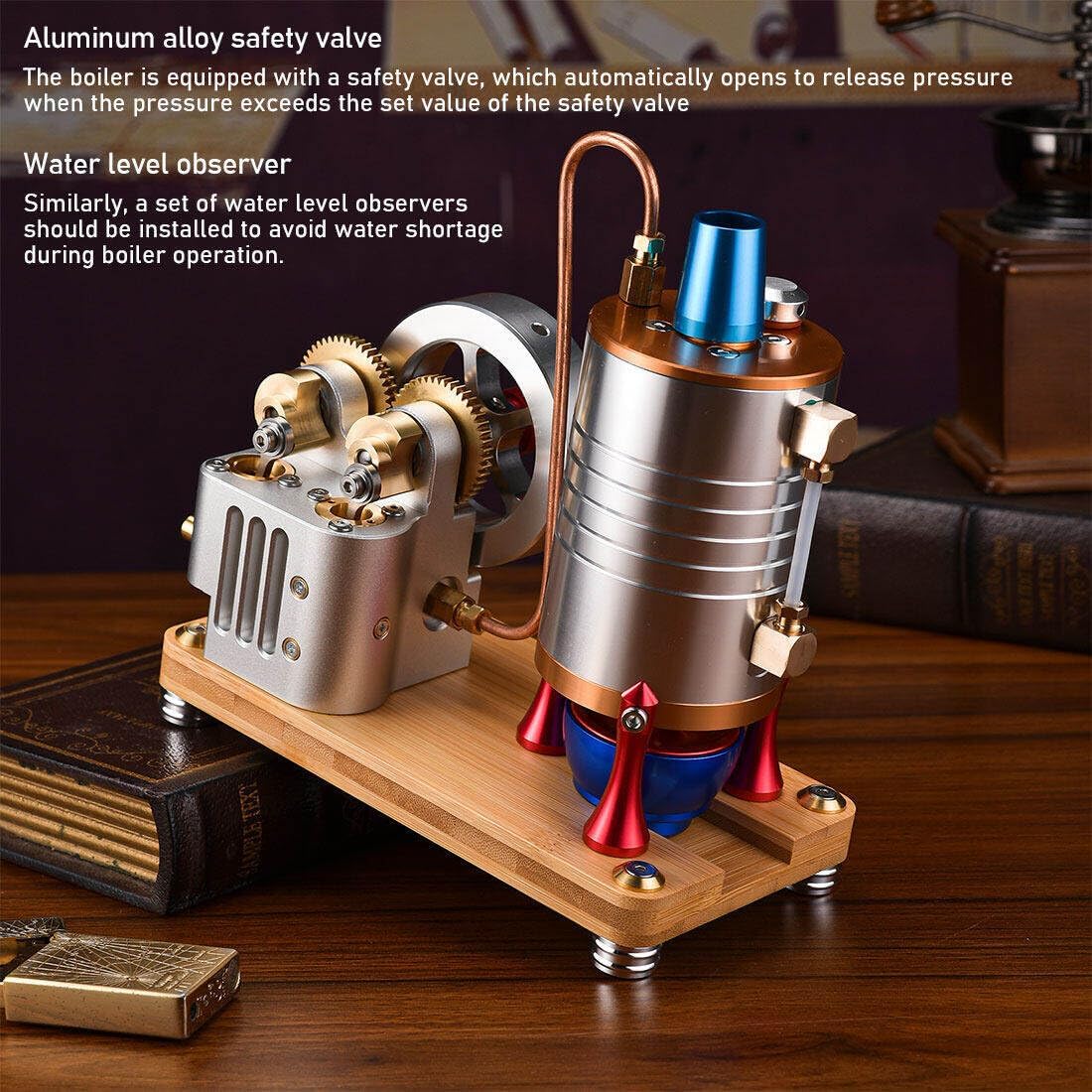

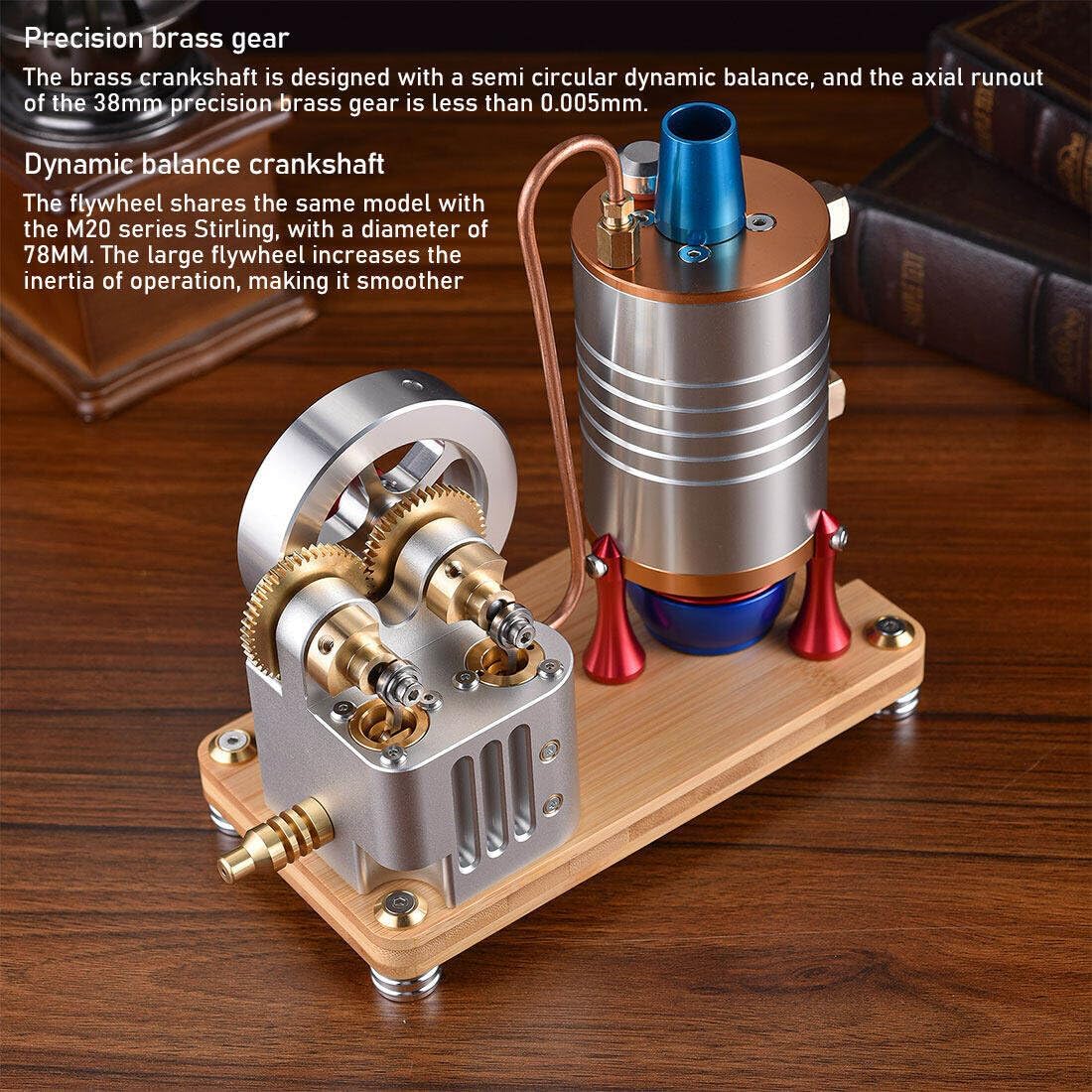

• ➤ The brass crankshaft with semi-circular balance design, coupled with precision brass gears with an axial runout of less than 0.005mm, guarantees smooth and efficient power transfer. A water level observation system prevents the boiler from running dry, enhancing the engines longevity and reliability.
• ➤ K007All-Metal Steam Engine is a one-way piston vertical steam engine, equipped with a set of vertical boilers, through the copper conduit to introduce steam into the main engine, steam through the ventilation valve into the cylinder, push the piston to work, piston crankshaft and ventilation valve crankshaft gear linkage, control the intake and exhaust process.
• ➤ Perfect as a standout choice for steam engine enthusiasts and professionals alike. Whether youre demonstrating steam power generation with a motor or using it for industrial purposes, the K007 Vertical Piston Steam Engine provides a versatile and reliable solution.
