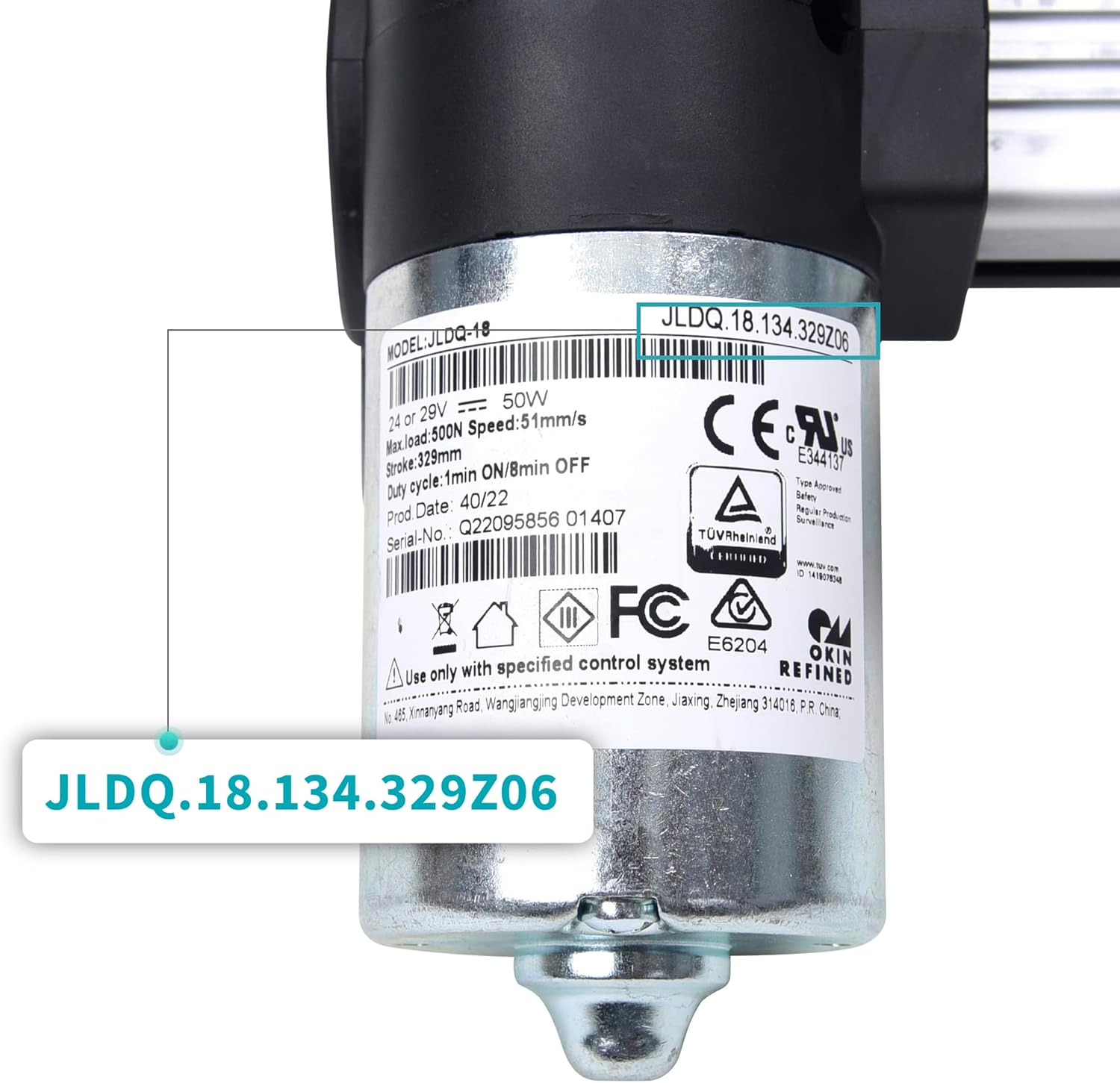

Okin Model JLDQ-18 & JLDQ.18.134.329Z06 Power Recliner Motor, Lift Chair Electric Reclining Couch Actuator Replacement Part for JLDQ.18.134.329Z
Product details
| Management number | 225551984 | Release Date | 2026/05/09 | List Price | $33.00 | Model Number | 225551984 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Okin Refined-R Model: JLDQ.18.134.329Z06 Recliner Motor. This is original Okin JLDQ motor Technical data: Load: Push force: 500N, Pull force: 500N Stroke: 329 mm, move with slide block Operation frequency: On 1 min/Off 8min The motor is suggested to replace OKIN model JLDQ.18.134.329Z06, and also JLDQ.18.134.329Z01/Z02/Z03/Z04/Z05/Z07/Z08/Z09/Z10/Z12/Z14, a little difference but not affect use. Please check your motor brand and model first.
- APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. The motor is suggested to replace OKIN model JLDQ.18.134.329Z06, and also JLDQ.18.134.329Z01/Z02/Z03/Z04/Z05/Z07/Z08/Z09/Z10/Z12/Z14, a little difference but not affect use. Please check your motor brand and model first.
- DESCRIPTION: The actuator motor set is made of 1 motor and 3 connectors, connector with 5-pin round plug and clip is for switch hand control, connector with 2-pin square plug is for power supply, connector with 2-pin socket is for slaved motor.
- SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 329 mm ; Minimum Inst Size (shrink): 134 mm; Maximum Inst Size: 463 mm; Load: push force: 500 N pull force: 500 N.
- NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
- PACKAGE: 1* Okin refined motor. Easy to install.
| ASIN | B0BRP65TLC |
|---|---|
| Item Weight | 5.34 pounds |
| Manufacturer | OKIN Refined Electric Technology Co.,Ltd |
| Item model number | JLDQ.18.134.329Z06 |
| Package Dimensions | 25.88 x 9.5 x 6.75 inches |
